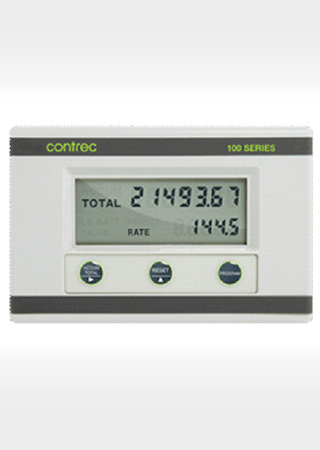

102D RATE TOTALISER

The 102D has an LCD display of flowrate and flow total. It takes the output from flowmeters and can be used for local or remote indication.

  • Easy to use
    – Quick and easy to setup
    – Preset to your requirements
    – Displays rate, total & accumulated total
  • Low Cost
  • Battery Powered
  • Highly accurate
    – Improve product quality
    – Reduce waste and save money
  • Versatile
    – Works with most flowmeters
    – Waterproof enclosure
    – Mounts on the pipe, wall or flowmeter

Application

The 102D Rate Totaliser is designed to display the flow rate and total of your process liquid. You can use it for monitoring, controlling, dispensing, blending or filling of any liquid when used with a wide variety of flowmeters. It is ideal for areas where a power supply is not available.

Setup

The rate and totals can be displayed in any engineering units, for example litres per minute and
barrels. The setup is easy via the front keypad and it can be preset for your requirements.

Operation

The flowrate and resettable total are displayed simultaneously. The 102D stores a non
resettable total to monitor long term consumption.

Installation

The 102D can be mounted directly on to your flowmeter, wall mounted or pipe mounted. Cables are installed via waterproof cable glands.

Construction

The instrument is housed in a polycarbonate enclosure that is completely watertight.

DOWNLOAD DETAILED SPECIFICATION
