202Di RATE TOTALISER

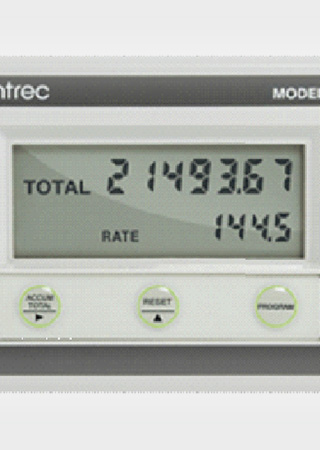

The Intrinsically Safe 202Di has an LCD display of flowrate and flow total. It takes the output from flowmeters and can be used for local or remote indication.

  • Easy to use
    – Quick and easy to setup
    – Preset to your requirements
    – Displays rate, total & accumulated total
  • Optional 4-20mA output
  • Optional high & low alarms
  • ATEX approved Intrinsically Safe
  • Highly accurate
    – Improve product quality
    – Reduce waste and save money
  • Versatile
    – Works with most flowmeters
    – Waterproof enclosure
    – Mounts on the pipe, wall or flowmeter
    – Battery or DC powered

Application

The 202Di Rate Totaliser is designed to display the flow rate and total of your process liquid. You can use it for monitoring, controlling, dispensing, blending or filling of any liquid when used with a wide variety of flowmeters. The battery powered version is ideal for areas where a power supply is not available.

Operation

The flowrate and resettable total are displayed simultaneously. The 202Di also stores a non resettable total to monitor long term consumption.

Setup

The rate and totals can be displayed in any engineering units, for example litres per minute and
barrels. The setup is easy via the front keypad and it can be preset for your requirements.

Installation

The 202Di can be mounted directly on to your flowmeter, wall mounted or pipe mounted. Cables are installed via waterproof cable glands.

Optional Features

1. Analogue 4-20mA output
An optional two wire loop powered 4-20mA output is available for transmitting to other instruments or control equipment. It is scaleable to your requirements and provides a fast response to changes in flowrate. The operating power is drawn from the 4-20mA loop so that the batteries
will last indefinitely.
2. High and low flow alarms
Two flow rate alarms are available for monitoring the flow. The output will trigger when the flow rises above or falls below the high and low alarm levels. This option requires a DC power supply.
3. Pulse Output
In place of the high alarm option, scaleable pulse output is available for transmitting to remote instrumentation. This option requires a DC power supply.

Construction

The instrument is housed in a polycarbonate enclosure that is completely watertight.
