This range of flowmeters is used for liquids such as water, light oils, solvents and low viscosity chemicals. You can use them for batching, flow rate monitoring, controlling, blending and filling. The flowmeter is highly accurate and often used for testing the performance of pumps, engines, valves and other flowmeters. In hazardous areas you can use the flowmeters with the Apollo IS pick-off coil approved to ATEX II 1G Ex ia IIC T5/T4 Ga (-20°C <Ta <80°C/+100°C). The signal can be used in the IS area or transmitted to the safe area using the intrinsically safe P5 preamplifier and suitable barriers.
The signal can be used for a local display, remote display or converted for transmission to a separate control system. Apollo have a range of instruments to suit all your requirements.

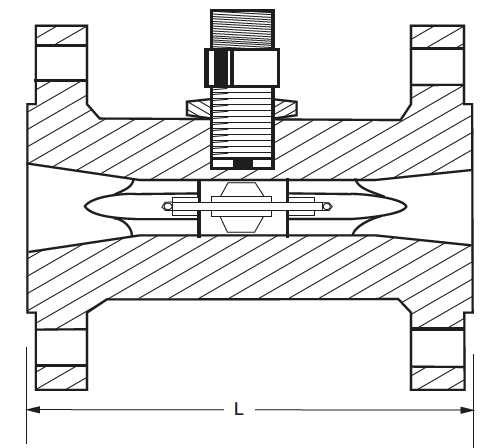

Principle of Operation
When liquid flows and the rotor turns, the sensor detects the movement of the blade tips and generates pulses. The pulse frequency is proportional to the flowrate.
The stainless steel construction is durable and gives excellent corrosion resistance. The rotor is machined from solid making it virtually indestructible. The sleeve bearings provide you with highly reliable performance over long periods.
